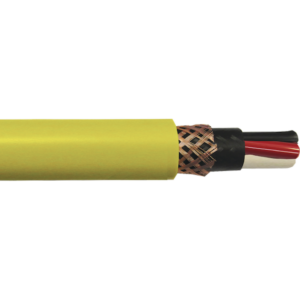

SMECY04/6.0YEL screened 4 core x 6.0mm² cable

$30.90 (excl. GST)

4 x 6.0mm²

Flexible Industrial Copper Braid Earth Screened Cable 0.6/1KV 90°C

Sold by the metre. Specify the length of cable required below. If various cut lengths required, please note in comments at checkout.

In stock (can be backordered)

Product Code: SMECY04/6.0YEL



Description

APPLICATIONS:

  • Power suitable for indoor/outdoor power supplies and industrial applications.
  • Safety copper braid for earth connection and screening purposes.
  • Leads Suitable for dry and damp industrial applications.

PRODUCT FEATURES:

  • Yellow sheath for high visibility.
  • Copper braided screen for maximum safety.
  • Tear, notch and water resistant sheath.
  • Flame retardant.
  • UV Stabilised
  • Resistance to environmental factors like oxidation, ozone and sunlight.
  • Heat, oil and chemical resistant.
  • Customised cable printing available – P.O.A



Specifications

CONSTRUCTION:

  • Relevant Standards AS/NZS 5000.1, AS/NZS 3008, AS/NZS 1125, AS/NZS 3808, IEC 60332-1, RoHS Compliant.
  • Conductor: Annealed fine wires of plain electrolytic copper stranded for high flexibility VDE 0295 (Class 5).
  • Insulation: SPVC V-90HT.
  • Inner Sheath: SER105.
  • Screening: Flexible copper braid (Earth Connection).
  • Sheath: SER105 Yellow
  • Standard core colours: 4 Core – Red, White, Blue, Black (CBS for earth connection).
  • Operating Temperature Range Fixed -20°C to 90°C / Flexing -5°C to 90°C.
  • Maximum Conductor Temperature 105°C (Current ratings based on 30°C air temp).
  • Rated Voltage: Uo/U 0.6/1kV.
  • Max AC Operating Voltage Uo 0.7kV.

SPECIFICATIONS:

  • No. of Cores x Size: 4 x 6.0mm
  • Approx Stranding: 84/0.30
  • Approx Overall Diameter (mm): 20.5
  • Approx Weight (Kg/Km): 695
  • Nominal Amps Unenclosed Protected from Sun @30°C fixed Application (touching): 41
  • 3 Phase Volt Drop @50Hz / MAX Conductor Temp 90°C (Mv/Am): 6.800
  • Max Conductor Resistance @20°C Ω/km: 3.3
  • Max Screened Resistance @20°C Ω/km: 3.3



Compliance

SMECY SERIES Supplier Declaration of Conformity



Data Sheet

SMECY Series Data Sheet
